Pro Audio Systems

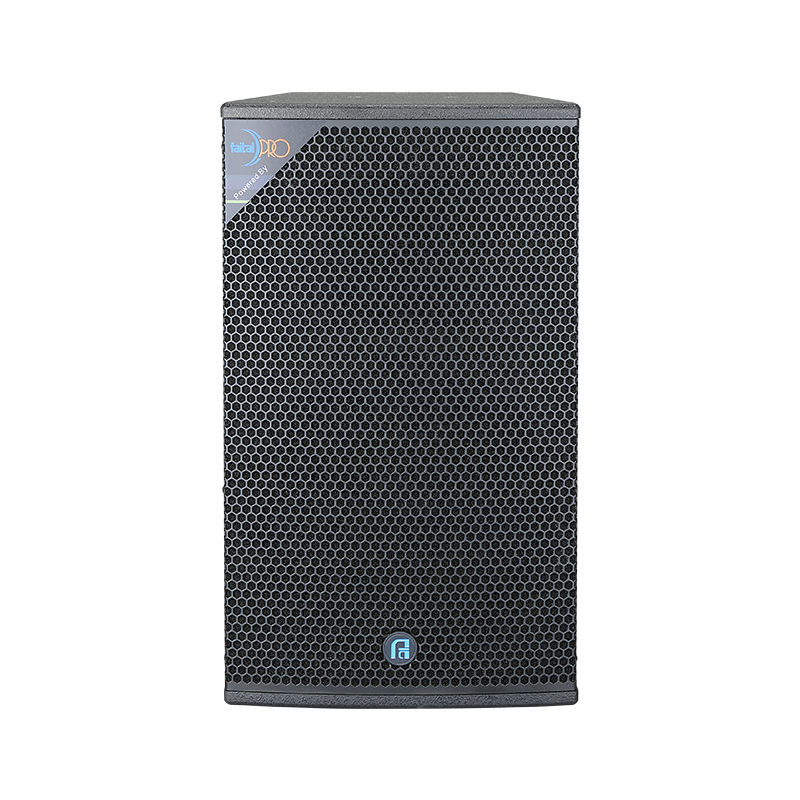

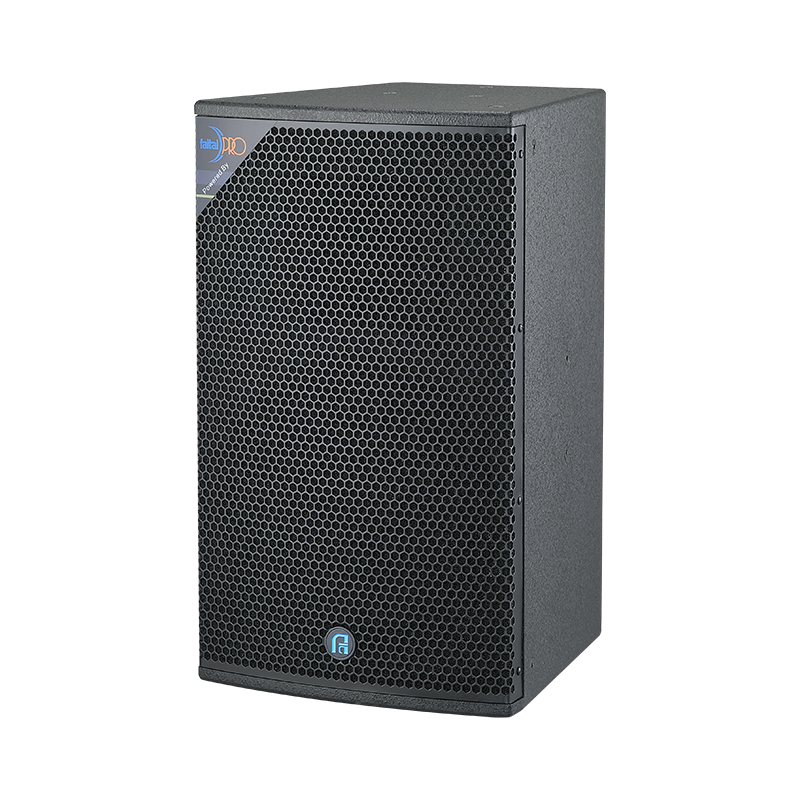

CH12
AT A GLANCE
Real 400W RMS power capacity (8 hours pink noise)
Distortion free and natural reproduction
True full range speaker without DSP
Proprietary 80°x50° elliptic horn
APPLICATIONS
CH12 loudspeaker system is suitable for nearfield main PAreinforcement with subwoofer for permanent installation.Suitableinspaceslike:
- Ultimate Trendy night club
- Multi-functional room
- Auditorium and Theatre
SPECIFICATIONS
| Power handling (50~15000Hz pink noise 8 hours) | 400W / 800W Program |
| Nominal impedance | 8 Ohm |
| Frequency response (-6dB half space, no EQ) | 55~20000Hz |
| Manufacturing Consistency tolerance | ±2dB from 300 to 10000Hz |
| Average Sensitivity (wideband 200~16000Hz) | 98dB/W/m |
| Calculated Maximum SPL / 1m | 124dB continuous / 127dB Program |
| Nominal Directivity (-6dB) | 80º x 50º above 1300Hz |
| Recommended low cut filter |
55Hz 24dB/oct in full range mode 60-120Hz with subwoofer |
| Low Frequency driver |
Custom made 12" AAUDIO Ferrite magnet, 3” In / Out Voice coil |
| High Frequency driver |
1"exit Italy Faitol, 1.7", Ferrite magnet |
| Crossover |
Passive mode only 1800Hz, 12dB/oct on , 18dB/oct on LF HF |
| Flying hardware | 20 M18 points |

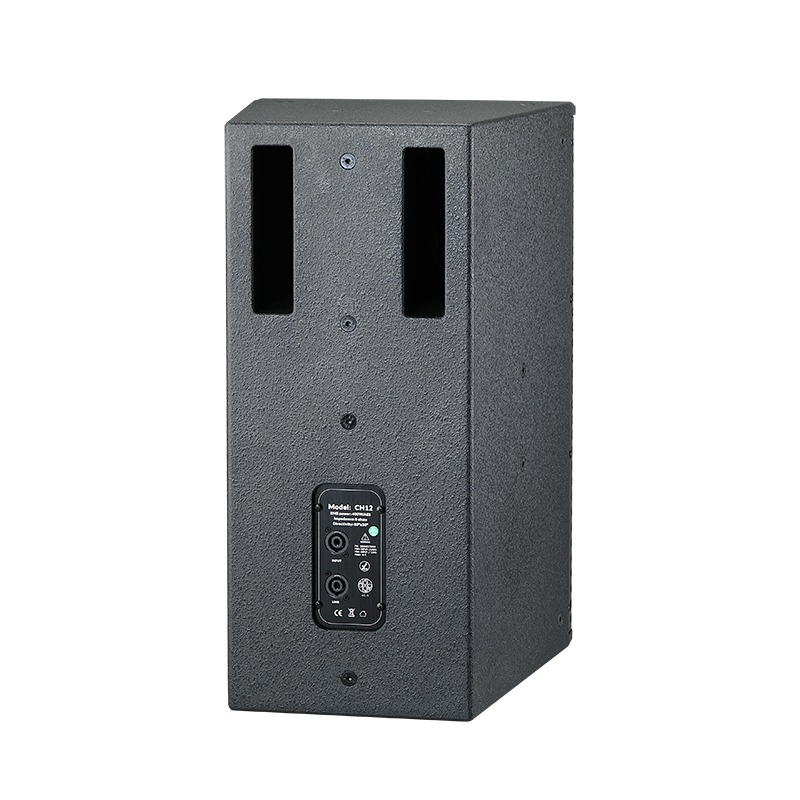

| Connectors | 2x Speakon NEUTRIK NL MP ® 4 (1+/1- Input) |
| Pole mount | 35mm |
| Cabinet |
CNC made with tongue and grove assembly 15mm birch plywood |
| Finish | Touring grade textured black coating |
| Size (WxHxD) | 358x610x390mm |
| Weight | 20kg net, 22kg gross |
