Pro Audio Systems

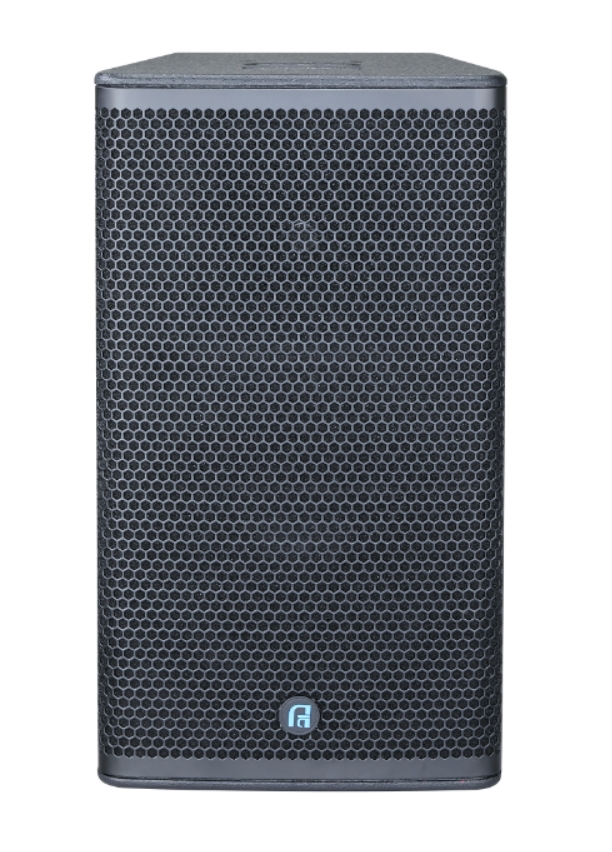

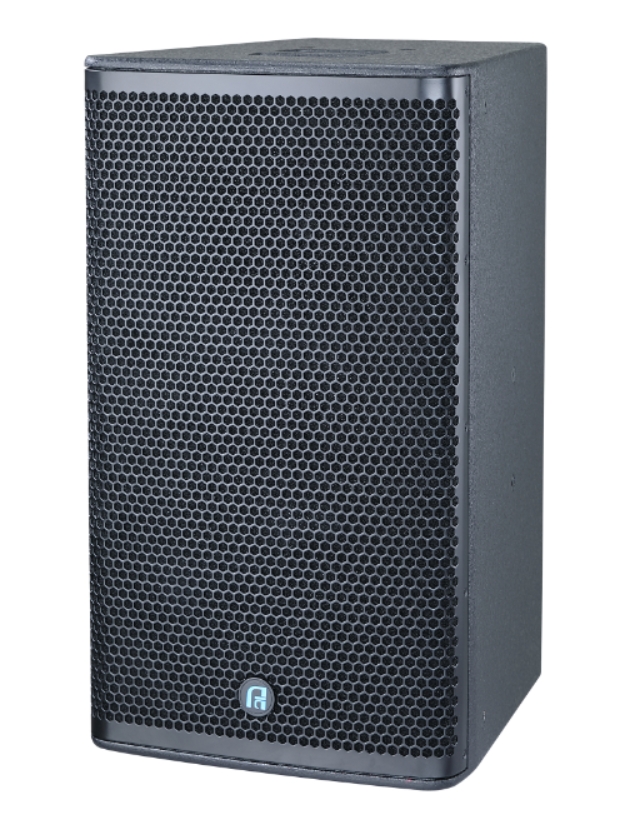

CT12
AT A GLANCE
Real 500W power capacity (8 hours pink noise) 5 RMS
Distortion free and natural reproduction
Good bassfull range speaker withoutDSP
Optimized for smooth frequency response in and out axis
Custom made European drivers
Proprietary 80ºx50º elliptic horn
APPLICATIONS
CT12 loudspeaker system is suitable fornearfieldmain
PAreinforcementwithsubwooferforpermanent installation.
Suitableinspaceslike:
- room KTV
-Multi-functionalroom
-Trendynightclu
SPECIFICATIONS
| Power handling (50~15000Hz pink noise 8 hours) | 500W / 1000W Program |
| Nominal impedance | 8 Ohm |
| Frequency response (-6dB half space, no EQ) | 46~20000Hz |
| Manufacturing Consistency tolerance | ±2dB from 300 to 10000Hz |
| Average Sensitivity (wideband 200~16000Hz) | 97dB/W/m |
| Calculated Maximum SPL / 1m | 123dB continuous / 126dB Program |
| Nominal Directivity (-6dB) | 80º x 50º above 1300Hz |
| Recommended low cut filter |
40Hz 24dB/oct in full range mode 60-120Hz with subwoofer |
| Low Frequency driver |
Custom made 12" AAUDIO Ferrite magnet, 3” In / Out Voice coil |
| High Frequency driver |
1” exit AAUDIO Neodymium magnet, 1.7” Polymer diaphragm |
| Crossover |
Passive mode only 1800Hz, 12dB/oct on , 18dB/oct on LF HF |
| Flying hardware | 11 M18 points |
| Connectors | 2x Speakon NEUTRIK NL MP ® 4 (1+/1- Input) |
| Pole mount | 35mm |
| Cabinet |
CNC made with tongue and grove assembly 15mm birch plywood |
| Finish | Touring grade textured black coating |
| Size (WxHxD) | 350x620x405mm |
| Weight |
18kg net, 20kg gross |
