Pro Audio Systems

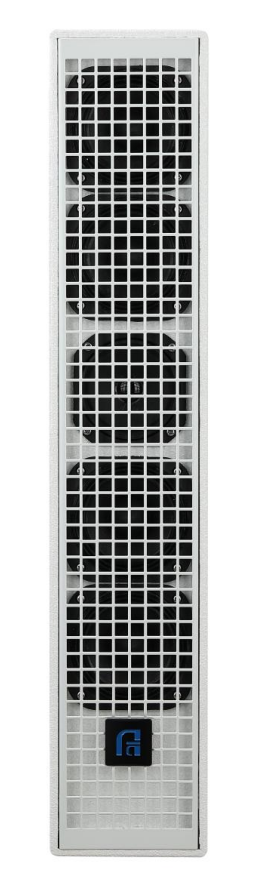

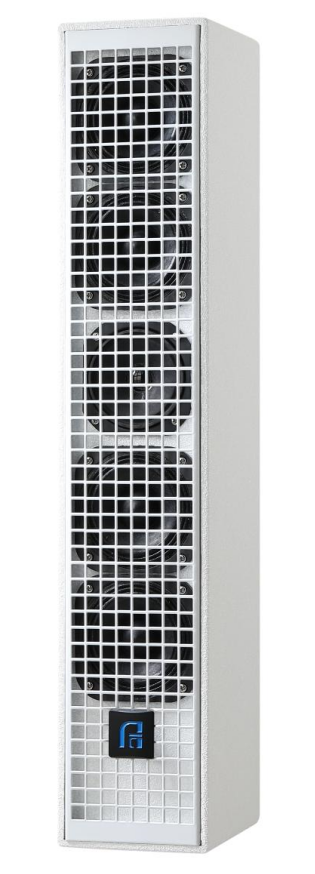

L403
AT A GLANCE
Real 120W RMS power capacity
Custom made European drivers
Distortion free and natural reproduction
Optimized for smooth frequency response in and out axis
APPLICATIONS
L403 loudspeaker system is suitable for near field main
reinforcement with subwoofer for permanent installation.
Suitable in spaces like:
- Light night club
- Multi-functional room
- Meeting room
SPECIFICATIONS
| Power handling (50~15000Hz pink noise 8 hours) | 120W / 240W Program |
| Nominal impedance | 8 Ohm |
| Frequency response (-6dB half space, no EQ) | 100~18000Hz |
| Average Sensitivity (wideband 200~16000Hz) | 95dB/W/m |
| Calculated Maximum SPL / 1m | 116dB continuous / 119dB Program |
| Nominal Directivity (-6dB) | 120º x 40º above 1000Hz |
| Recommended low cut filter |
75Hz 24dB/oct in full range mode 100-200Hz with subwoofer |
| Low Frequency driver |
Custom made 3.5" AAUDIO
Neodymium magnet, 1” In / Out Voice coil
|
| High Frequency driver |
1” AAUDIO
Ferrite magnet, 1” Paper cone
|
| Crossover |
Passive mode only
3000Hz, 6dB/oct on , 6dB/oct on LF HF
|
| Flying hardware |
8 M18 points
|
| Connectors |
Fasten connector
|
| Pole mount |
No
|
| Cabinet |
CNC made with tongue and grove assembly
12mm birch plywood
|
| Finish |
Touring grade textured black coating
|
| Size (WxHxD) |
120x620x150mm
|
| Weight |
4kg net, 5kg gross
|
