Pro Audio Systems

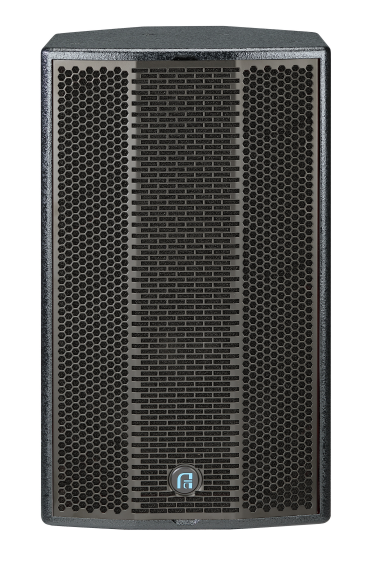

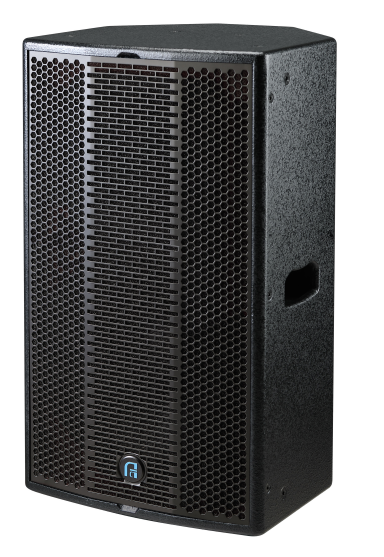

CF15
AT A GLANCE
Real 800W power capacity (8 hours pink noise)
Distortion free and natural reproduction
True full range speaker without DSP
Optimized for smooth frequency response in and out axis
Custom made European drivers
Proprietary 80ºx50º elliptic horn
APPLICATIONS
CF15 loudspeaker system is suitable for near field main PA reinforcement with subwoofer for permanent installation.
Suitable in spaces like:
- Ultimate Trendy night club
- Multi-functional room
- Auditorium and Theatre
SPECIFICATIONS
| Power handling (50~15000Hz pink noise 8 hours) | 800W /1600W Program |
| Nominal impedance | 8 Ohm |
| Frequency response (-6dB half space, no EQ) | 42~20000Hz |
| Manufacturing Consistency tolerance | ±2dB from 300 to 10000Hz |
| Average Sensitivity (wideband 200~16000Hz) | 99dB/W/m |
| Calculated Maximum SPL / 1m | 128dB continuous / 134dB Program |
| Nominal Directivity (-6dB) | 80º x 50º above 1300Hz |
| Recommended low cut filter |
35Hz 24dB/oct in full range mode 60-120Hz with subwoofer |
| Low Frequency driver |
Custom made 15" AAUDIO Ferrite magnet, 4” In / Out Voice coil |
| High Frequency driver |
1.4” exit AAUDIO Ferrite magnet, 2.8” Polymer diaphragm |
| Crossover |
Passive mode only 1500Hz, 12dB/oct on , 18dB/oct on LF HF |
| Flying hardware | 9pc M18 points |
| Connectors | 2x Speakon NEUTRIK NL MP ® 4 (1+/1- Input) |
| Pole mount | 35mm 0°and10° |
| Cabinet |
CNC made with tongue and grove assembly 15&18mm birch plywood |
| Finish | Touring grade textured black coating |
| Size (WxHxD) | 448x720x418mm |
| Weight | 35kg net, 38kg gross |
