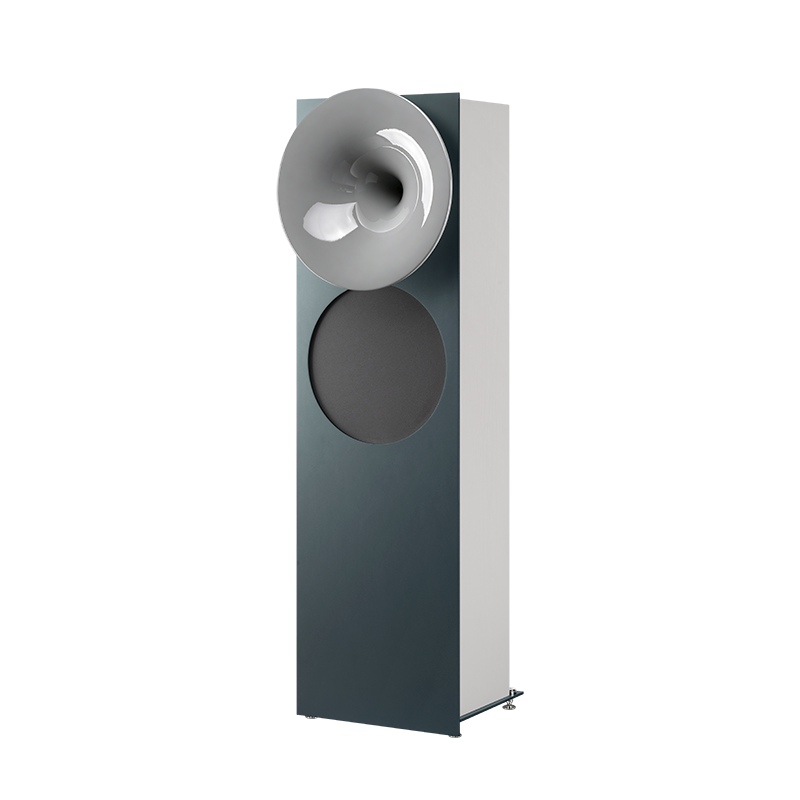

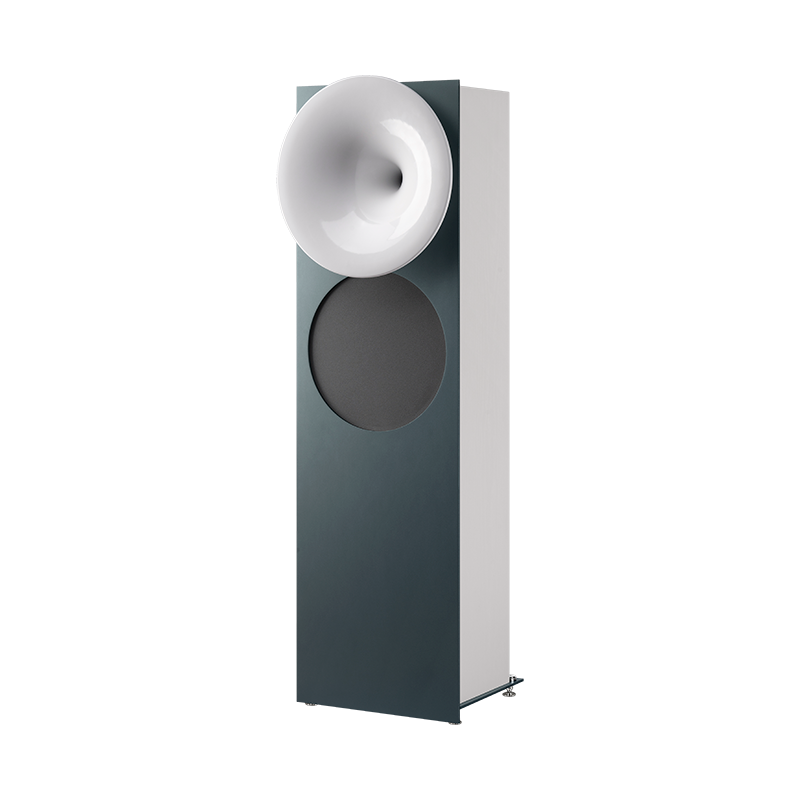

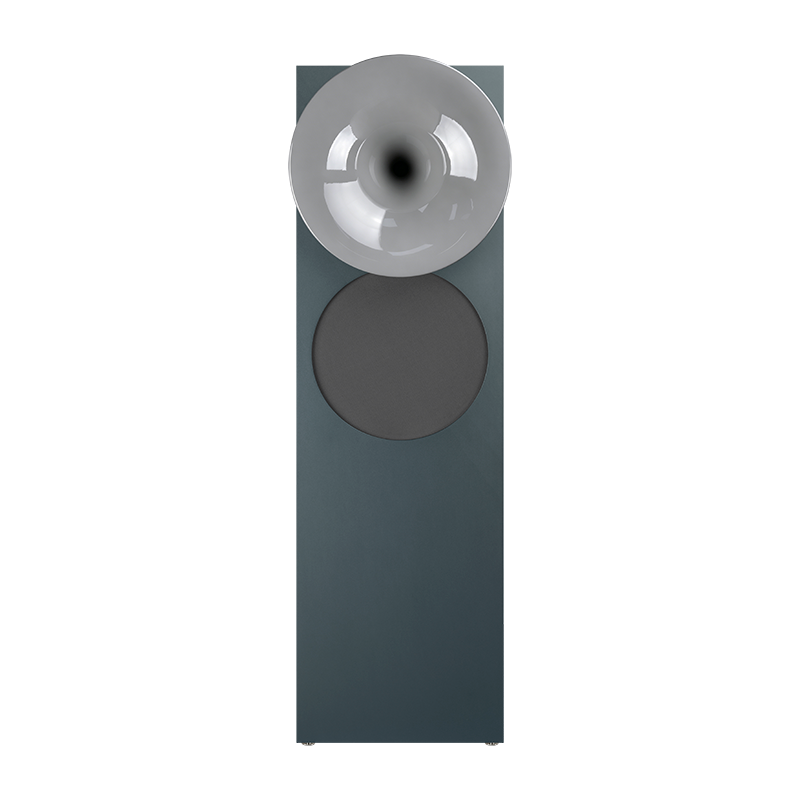

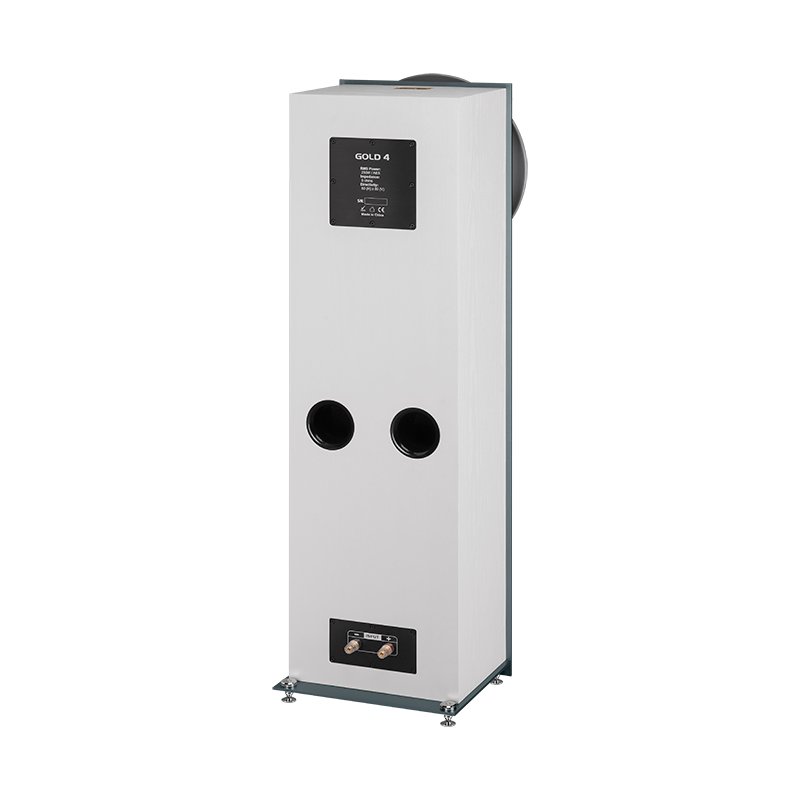

Karaoke Speaker
GOLD4
AT A GLANCE
Real 250W RMS power capacity
HIFI sound for near field application
Two-way with very good phase response
Premium custom made European driver
APPLICATIONS
Gold4 loudspeaker system is suitable for near field
HIFI home concert reinforcement installation.
Suitable in spaces like:
- High fidelity music playback
- Multi-functional room
- High-grade solo concert
- High-grade home theater
SPECIFICATIONS
| Power handling (50~15000Hz pink noise 8 hours) | 250W RMS/1000W Peak |
| Nominal impedance | 8 Ohm |
| Frequency response | 40~20000Hz |
| Manufacturing Consistency tolerance | ±2dB from 300 to 10000Hz |
| Average Sensitivity (wideband 100~16000Hz) | 94dB/W/m |
| Calculated Maximum SPL /1m | 118dB continuous/124dB Peak |
| Nominal Directivity (-6dB) | 80°x80° above 1200Hz |
| Low Frequency driver |
Custom made 10" driver
Ferrite magnet, 2” In / Out Voice coil |
| High Frequency driver |
1”exit
Neodymiun magnet, 1” coaxial HF |
| Crossover |
Passive mode only
2200Hz,12dB/oct on LF, 12dB/oct on HF |
| Connectors | Fasten connector |
| Cabinet |
CNC made with tongue and grove assembly
15mm high density wood |
| Finish |
PVC coating
|
| Size (WxDxH) | 350x302x1110mm |
| Weight | 25kg net, 28kg gross |
