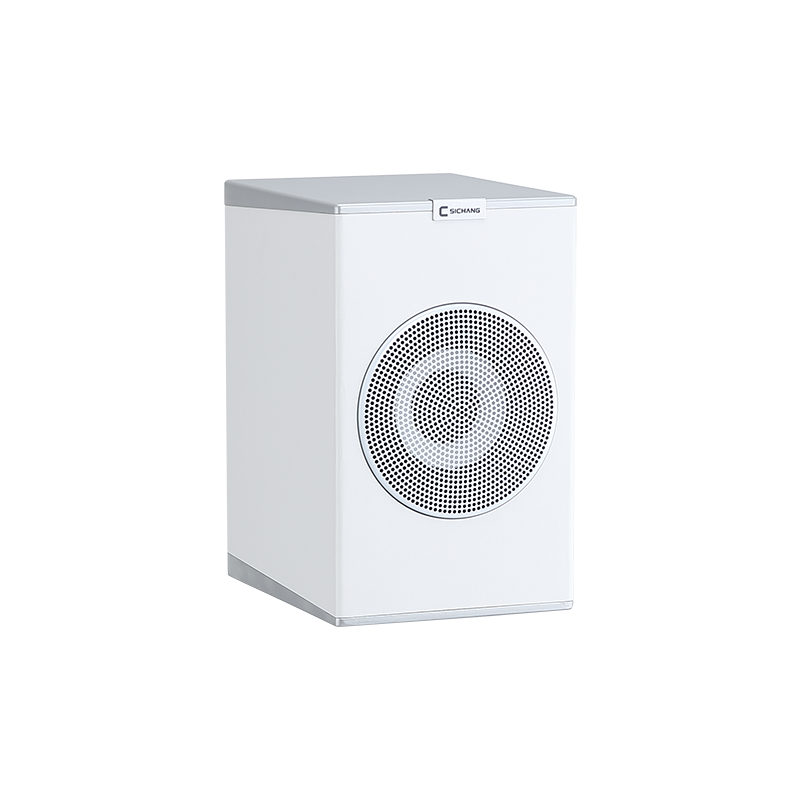

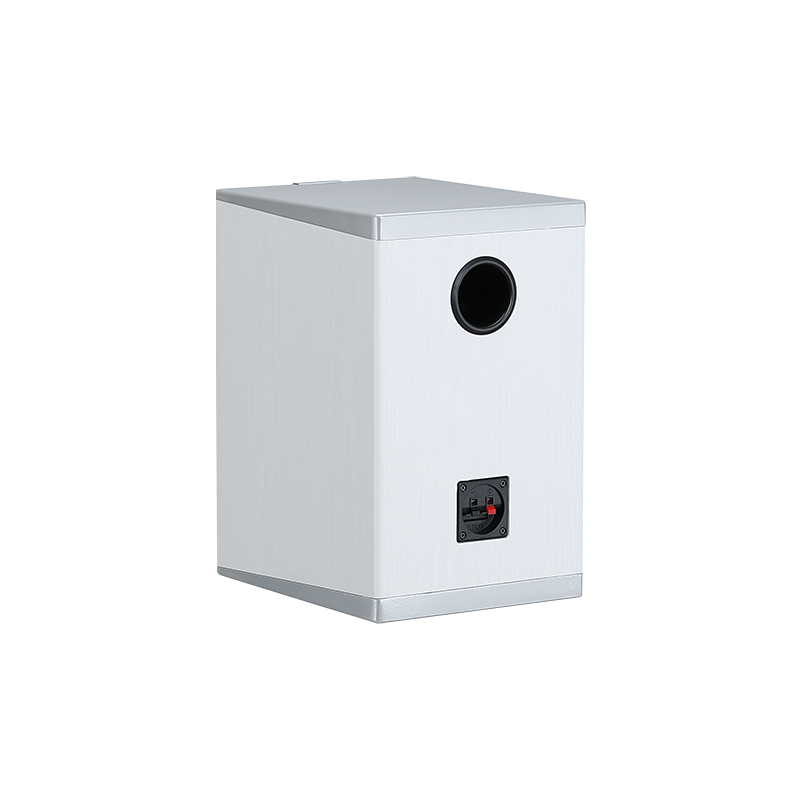

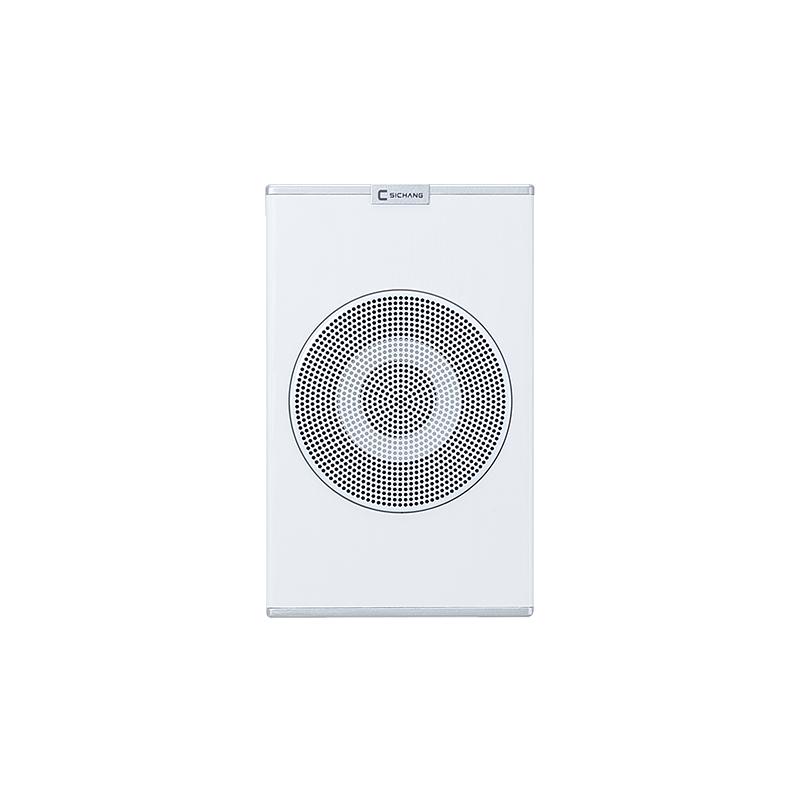

Karaoke Speaker
K66
AT A GLANCE
Real 150W RMS power capacity (8 hours pink noise)
HlFlsound for near field application
Coaxial driver with very good phase response
Premium custom made European driver
APPLICATIONS
K66 loudspeaker system is suitable fornearfield
HIFl home concert reinforcement installation.
Suitable in spaces like:
-High fidelity music playback
-Multi-functional room
-High-grade solo concert
SPECIFICATIONS
| Power handling (50-15000Hz pink noise 8 hours) | 150W RMS /600W Peak |
| Nominalimpedance | 4 Ohm |
| Frequency response | 40~20000Hz |
| Manufacturing Consistency tolerance | ±2dB fom 300 to 10000Hz |
| Average Sensitivity (wideband 100-16000Hz} | 91dB/W/m |
| Calculated Maximum SPL/ 1m | 112dB continuous / 118dB Peak |
| Nominal Directivity (-6dB) | 80°x 80°(conical) above 1200Hz |
| Low Fre quency driver |
Cuslom made 6.5" coaxial C-sichang driver
Ferrite magnet, 1.5"ln / Out Woice coil |
| High Frequency driver |
1" exit C-sichang
Neodymiun magnet, 1"coaxial HF |
| Crossover |
Passive mode onhy
3000Hz,12dB/octon LF,12dBkdt on HF |
| Connectors | Fasten connector |
| Cabinet |
CNC made with tongue and grove assembhy
12+25mm high density wood |
| Finish | White + gray, PvC coating |
| Size (WxDxH) | 230x298x370mm |
| Weight | 8.2kg net, 19kg gross(one pair packaging) |
