Karaoke Speaker
K63
AT A GLANCE
160W High-power amplifier
HlFl sound for near field application
MP3, WMA, WAV, FLAC, APE format supported
Coaxial driver with very good phase response
Premium custom made European driver
APPLICATIONS
K63 loudspeaker system is suitable for near field
HIFl home concert reinforcement installation.
Suitableinspaces like:
-High fidelitymusic playback
-Multi-functional room
-High-grade solo concert
SPECIFICATIONS
| AmplifierPower handling | 160W |
| Nominal impedance | 4 Ohm |
| Frequency response | 45~20000Hz |
| Manufacturing Consistency tolerance | ±2dB from 300 to 10000Hz |
| Average Sensitivity (wideband 100-16000Hz) | 91dB/W/m |
| Calculated Maximum SPL /1m | 112dB continuous /118dB Peak |
| Nominal Directivity (-6dB) | 80º x 80º (conical) above 1200Hz |
| Low Frequency driver |
Custom made 6.5" coaxial C-sichang driver
Femite magnet, 1 .5"ln / Out Woice coi |
| High Frequency drver |
1"exit AAUDIO
Ferrite magnet, 1" coaxial HF |
| Crossover |
Passive mode onhy
3000Hz,12dB/oct on LF, 12dB/oct on HF |
| AC Powerinput | Universal power supply 110-220 VAC, 50 to 60 Hz |

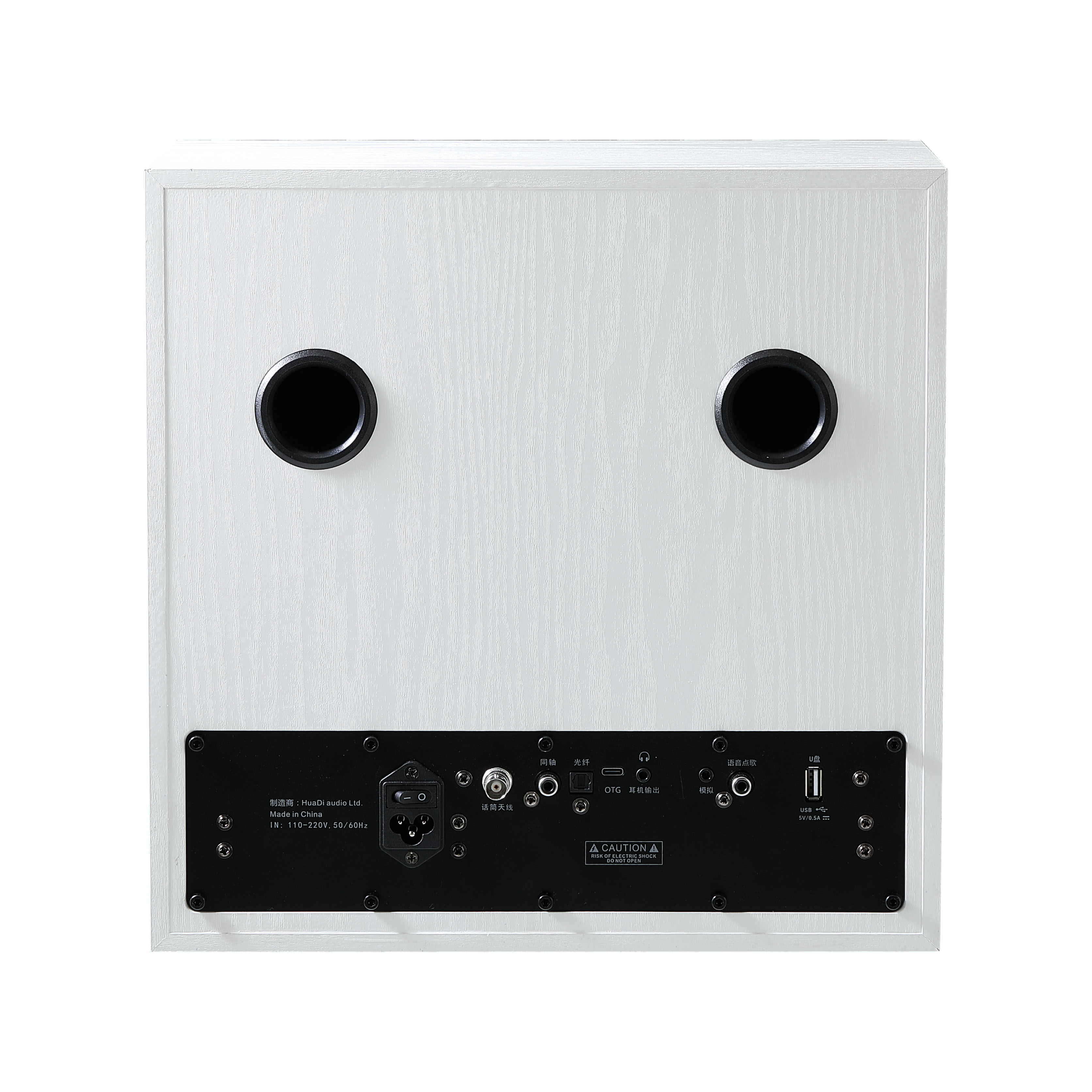

| Connectors |
Bluelooth, Coaxial and opfcal fbersignal input interface.
AUx auxili ary (an alog input audio input interface |
| Amplifier Protection | Thermal limiting, output overcurrent, overtemperature muting |
| USB Pont | Can play MP3, WMA, WAV, FLAC, APE format music fles. |
| Cabinet |
CNC made with longue and grove assembly
12+15mm high density wood |
| Finish | while matte Pvc |
| Size (WxDxH) | 330x160x330mm |
| Weight | 8kg net, 10kg gross |
