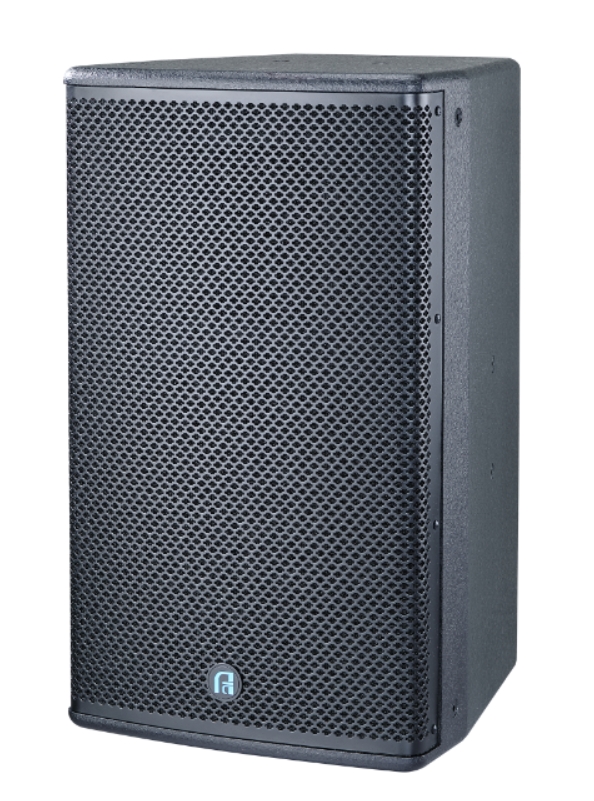

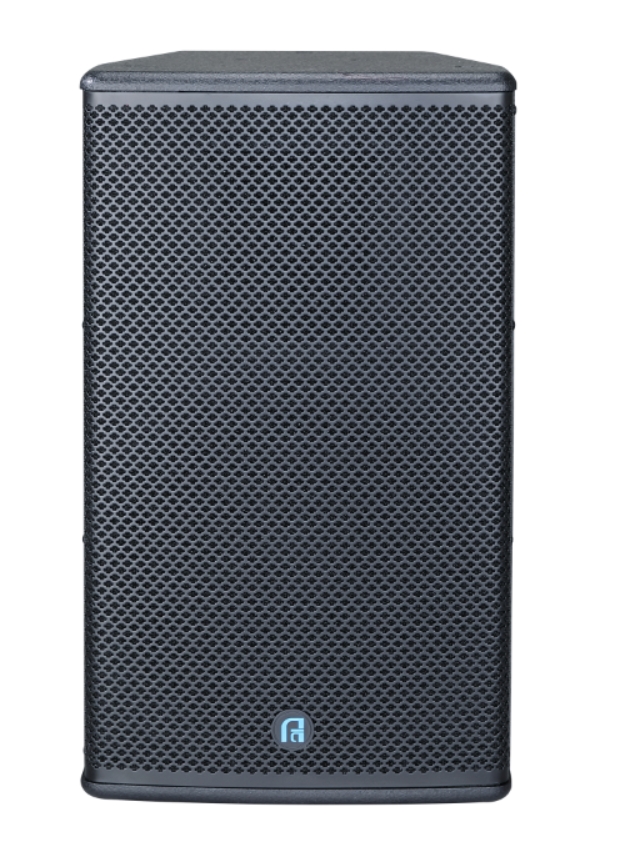

HD12
AT A GLANCE
Real 350W RMS power capacity (8 hours pink noise)
Distortion free and natural reproduction
True full range speaker withoutDSP
Proprietary 80ºx50º elliptic horn
APPLICATIONS
HD12 loudspeaker system is suitable fornearfieldmain
PA reinforcementwithsubwooferforpermanentinstallation.
Suitableinspaceslike:
-UltimateTrendynightclub
-Multi-functionalroom
-AuditoriumandTheatre
SPECIFICATIONS
| Power handling (50~15000Hz pink noise 8 hours) | 350W / 700W Program |
| Nominal impedance | 8 Ohm |
| Frequency response (-6dB half space, no EQ) | 55~20000Hz |
| Manufacturing Consistency tolerance | ±2dB from 300 to 10000Hz |
| Average Sensitivity (wideband 200~16000Hz) | 98dB/W/m |
| Calculated Maximum SPL / 1m | 124dB continuous / 127dB Program |
| Nominal Directivity (-6dB) | 80º x 50º above 1300Hz |
| Recommended low cut filter |
55Hz 24dB/oct in full range mode 60-120Hz with subwoofer |
| Low Frequency driver | Custom made 12" |
| High Frequency driver | 1.7Polymer diaphragm |
| Crossover | Passive mode only |
| Flying hardware | 20 M18 points |
| Connectors | 2x 4 (1+/1- Input) |
| Cabinet | CNC made with tongue and grove assembly |
| Finish | Touring grade textured black coating |
| Size (WxHxD) | 350*600*382mm |
| Weight |
19.7kg net, 22.2kg gross |
